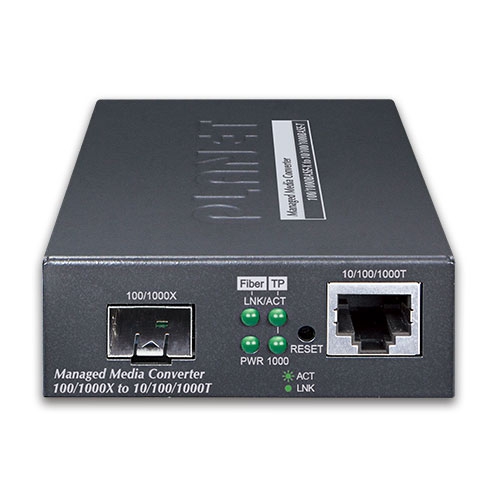

ממיר מדיה אופטי PLANET GT-915A
מקט: ADV-GT-915A
* התמונות להמחשה בלבד
ממיר מדיה אופטי PLANET GT-915A
מקט: ADV-GT-915A
₪820
שיחה עם נציגGT-915A 10/100/1000BASE-T to 100/1000BASE-X SFP Managed Media Converter
The GT-915A 10/100/1000BASE-T to 100/1000BASE-X Managed Media Converter is developed to meet the advanced demand of network applications.
Speed: 10/100/1000TX to 100/1000X SFP
Optical Interface: *SFP module required and sold separately*
Distance: 10km to 120km (vary on SFP transceiver)
Power Input: DC 5V, 2A
Power Consumption: 3.4W/11.6BTU
TAA Compliant
| Hardware Specifications | |
|---|---|
| Copper Interface | 1 x 10/100/1000BASE-T RJ45 port (Auto-MDI/MDI-X) twisted pair |
| Fiber Interface | 1 x 100/1000BASE-X SFP Slot |
| Reset Button | < 10 sec: System reboot > 10 sec: Factory default |
| ESD Protection | 6KV DC |
| Enclosure | Compact-sized metal case |
| Installation | Wall mountable Media convert Chassis installation Optional DIN-rail kit |
| Dimensions (W x D x H) | 94 x 70 x 26mm |
| Weight | 201g (device only) |
| Power Input | DC 5V, 2A |
| Power Consumption | 3.4 watts/11.6 BTU (maximum) |
| LED Indicator | PWR, (Green) TP LINK/ACT, 1000 (Green) Fiber LINK/ACT (Green) |
| Network Cables | 10/100/1000BASE-T: 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100 m 100BASE-TX: 2-pair UTP Cat. 5, up to 100 m 1000BASE-T: 4-pair STP Cat 5 up to 100m100/1000GBASE-SX/LX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. 9/125μm single-mode cable, extending long distance to 10/20/40/60/80/120km (vary on fiber transceiver or SFP module) |
| Switching Specifications | |
| Switch Processing Scheme | Store and Forward |
| Fabric | 4Gbps |
| Throughput (packet per second) | 2.98Mpps@64bytes |
| Address Table | 1K entries, automatic source address learning and aging |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Jumbo Frame | 16K |
| Shared Buffer | 512Kb |
| Layer 2 Function | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status |
| VLAN | IEEE 802.1Q tag-based VLAN IEEE 802.1ad Q-in-Q tunneling Up to 16 VLAN groups, out of 4094 VLAN IDs Management VLAN |
| Bandwidth Control | Per port bandwidth control Ingress: 1~1000,000Kbps Egress: 1~1000,000Kbps |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching Traffic classification: 802.1p priority IP DSCP IP Address |
| Security Function | |
| Access Security | Remote management protocols control by SSH, Telnet, HTTP ans HTTPs |
| System Management | |
| Basic Management Interfaces | Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMP v3 |
| System Management | Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP LLDP protocol NTP PLANET Smart Discovery Utility PLANET CloudViewer app |
| Event Management | Remote syslog Local system log SNMP trap |
| Standards Conformance | |
| Regulatory Compliance | FCC Class A, CE Class A |
| Standards Compliance | IEEE 802.3, 10BASE-T IEEE 802.3u, 100BASE-TX/FX IEEE 802.3ab, 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x full-duplex flow control IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1ad Q-in-Q VLAN stacking IEEE 802.1ab LLDP IEEE 802.3ah OAM RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
- יצרן: Planet
- אחריות: 24 חודשים
- נותן האחריות: יבואן רשמי
- אספקה: עד 7 ימי עסקים
