ממיר אופטי תעשייתי PLANET IGTP-815AT
מקט: ADV-IGTP-815AT
* התמונות להמחשה בלבד
ממיר אופטי תעשייתי PLANET IGTP-815AT
מקט: ADV-IGTP-815AT
₪1,155
שיחה עם נציג
The IGS-815AT is the smallest, industrial-grade Gigabit PoE+ Media Converter, featuring one 100/1000BASE-X SFP fiber port and one 10/100/1000BASE-T 802.3at PoE+ copper port in an IP30-rated rugged case.
Speed: 100/1000X SFP to 10/100/1000T
PoE Standard: IEEE 802.3at PoE+
Optical Interface: *SFP module required and sold separately*
Distance: Up to 100km (vary on SFP module)
Power Requirement: 48~56V DC
Power Consumption:
35W/119BTU @ 48VDC (Full Loading w/PoE)
42W/143BTU @ 56VDC (Full Loading w/PoE)
Operating Temperature: -40° to 75°C
TAA Compliant
Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter
| Hardware Specifications | |
|---|---|
| Copper Port | 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance Auto-negotiation, auto MDI/MDI-X with PoE injector function |
| SFP Slot | 1000BASE-SX/LX/BX SFP interface Compatible with 100BASE-FX SFP |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| LED | System: Power (Green) Fiber 100/1000BASE-X: LNK/ACT (Green) TP 10/100/1000BASE-T: LNK/ACT (Green) PoE: Power-in-use (Amber) |
| Dimensions (W x D x H) | 30 x 70 x 104 mm |
| Weight | 231g |

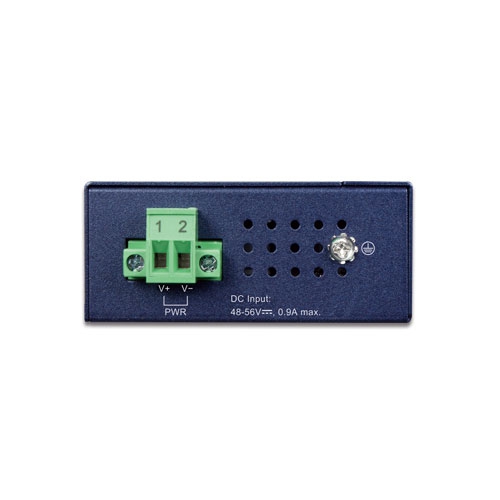

| Power Requirements | DC 48~56V, supports reverse polarity protection (>51V DC for PoE+ output recommended) |
| Power Consumption | System ON without loading DC 48V: 0.96W/3.27BTU DC 56V: 1.12W/3.82BTU Full loading with PoE DC 48V:35W/119BTU(PoE:30W) DC 56V:42W/143BTU(PoE: 36W) |
| DIP Switch | Off: LFP (Link Fault Passthrough) disable On: LFP (Link Fault Passthrough) enable FEF (Far End Fault) works with LFP to prevent data loss The DIP switch is turned off by default |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount ear |
| ESD Protection | 6KV DC |
| Cables | 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA / TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus |
| PoE Power Output | 48~56V DC: 36 watts max. |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 36 watts |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Environment | |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
- יצרן: Planet
- אחריות: 60 חודשים
- נותן האחריות: יבואן רשמי
- אספקה: עד 7 ימי עסקים
