ממיר אופטי תעשייתי PLANET IGTP-825AT
מקט: ADV-IGTP-825AT
* התמונות להמחשה בלבד
ממיר אופטי תעשייתי PLANET IGTP-825AT
מקט: ADV-IGTP-825AT
₪1,295
שיחה עם נציג
The IGTP-825AT is the industrial-grade Gigabit PoE+ Media Converter, featuring one 1000BASE-X SFP fiber port and one 10/100/1000BASE-T 802.3at PoE+ copper port.
Speed: 1000X SFP to 10/100/1000T
Optical Interface: *SFP module required and sold separately*
PoE Standard: IEEE 802.3at PoE+
Distance: 100m
Input Voltage: 24~56V DC
Power Consumption: See Spec. Chart
Operating Temperature: -40° to 75°C
TAA Compliant

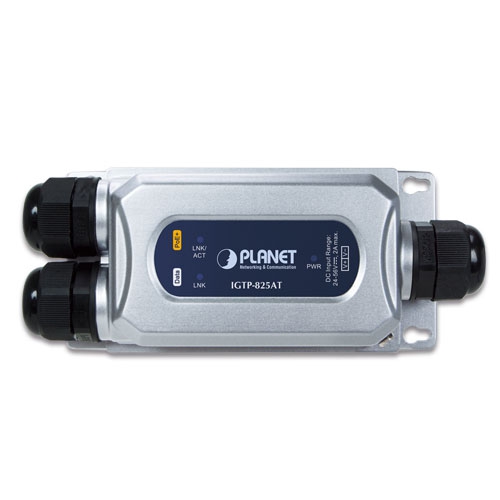

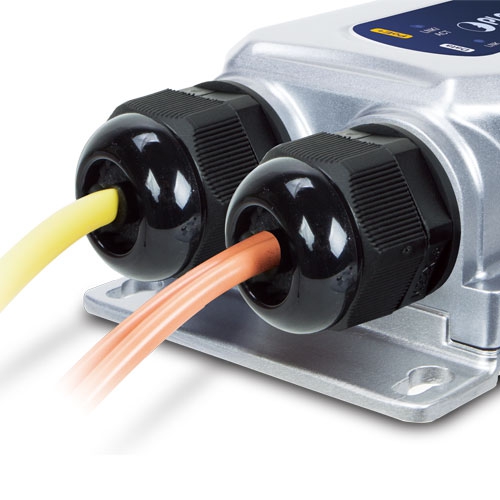

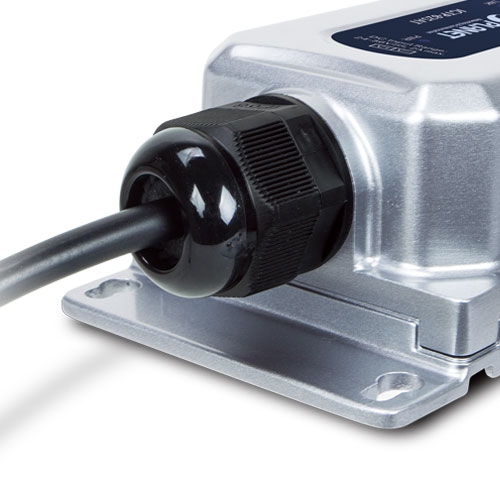

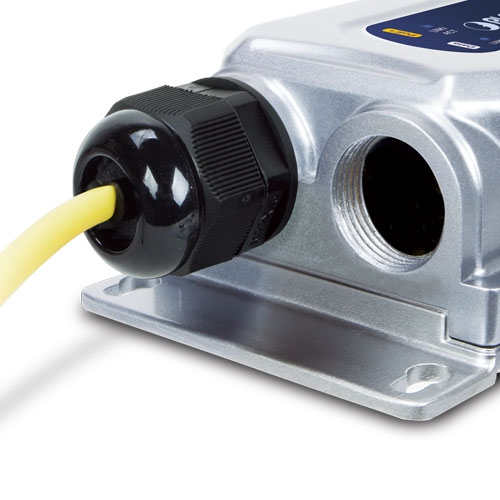

IP67-rated Industrial 1000BASE-X SFP to 10/100/1000T 802.3at PoE+ Media Converter (24~56V power boost, -40~75 degrees C, IK10 impact protection), 3 x waterproof cable glands included
| Hardware Specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

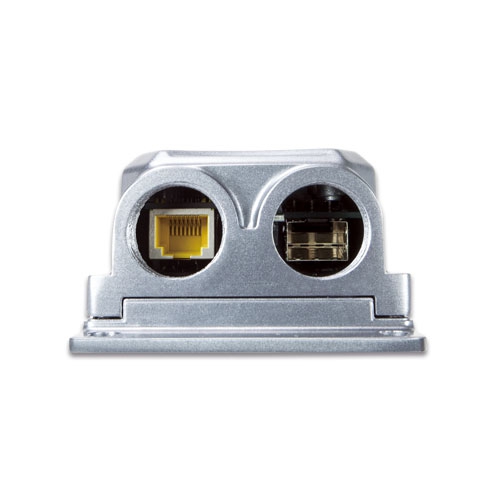

| Input Port (SFP Slot) | 1 x 1000BASE-SX/LX/BX “Data”in SFP port | ||||||||||||
| Output Port | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE+ “Data + DC” out RJ45 port – Auto MDI/MDI-X, auto-negotiation RJ45 connector |
||||||||||||

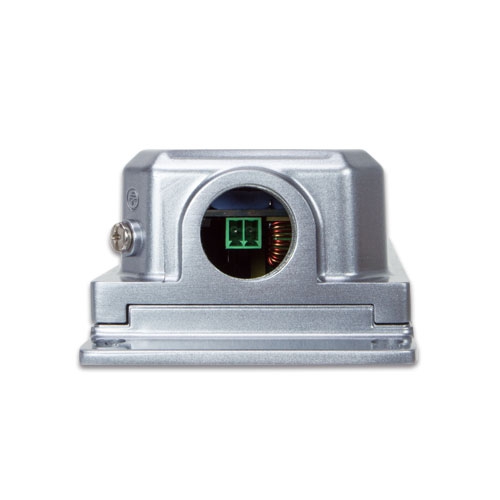

| Input Power Terminal Block | 1 x 2-pin terminal block – Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-) |
||||||||||||
| Cables | 10BASE-T: UTP category 3, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable(≤100m) 1000BASE-SX/LX: – Multi-mode: 50/125μm or 62.5/125μm optical fiber – Single-mode: 9/125μm optical fiber |
||||||||||||
| LED | PWR (Green) TP 10/100/1000BASE-T: LNK/ACT (Green) Fiber 1000BASE-X: LNK (Green) |
||||||||||||
| Input Voltage | 24~56V DC | ||||||||||||
| Power Consumption |
|
||||||||||||
| ESD Protection | Air 8KV DC Contact 6KV DC |
||||||||||||
| Surge Protection | 6KV | ||||||||||||
| Enclosure | IP67-rated and IK10 aluminum metal case | ||||||||||||
| Installation | Wall-mount ear | ||||||||||||
| Dimensions (W x D x H) | 150 x 43.8 x 72.94 mm 169.85 x 43.8 x 72.94 mm, with cable gland |
||||||||||||
| Weight | 389g | ||||||||||||
| MTBF | >100000 hours | ||||||||||||
| Power Over Ethernet | |||||||||||||
| PoE Standard | IEEE 802.3at Power over Ethernet Plus / End-span PSE Backward compatible with IEEE 802.3af Power over Ethernet |
||||||||||||
| PoE Power Output | 55V DC, max. 30 watts | ||||||||||||
| PoE Power Supply Type | End-span | ||||||||||||
| Power Pin Assignment | 1/2(+), 3/6(-) | ||||||||||||
| PoE Power Budget | 30 watts (max.) @ IEEE 802.3at PoE+ input | ||||||||||||
| Standards Conformance | |||||||||||||
| Regulatory Compliance | FCC Part 15 Class A, CE | ||||||||||||
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
||||||||||||
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
||||||||||||
| Environment | |||||||||||||
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
||||||||||||
| Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
||||||||||||
- יצרן: Planet
- אחריות: 60 חודשים
- נותן האחריות: יבואן רשמי
- אספקה: עד 7 ימי עסקים
